What is a Metal Core PCB?
Metal Core PCBs (MCPCBs) feature a metal base—typically aluminum or copper—instead of traditional FR4 substrate. This metal core provides superior heat dissipation by drawing heat away from components and spreading it across the board, making MCPCBs essential for high-power and heat-sensitive applications.
Metal Core Materials
Aluminum is the most widely used metal core material due to its excellent balance of thermal conductivity, lightweight nature, and cost-effectiveness. It is ideal for LED lighting, consumer electronics, and automotive applications where heat dissipation is crucial but overall cost must remain low.
Copper offers superior thermal conductivity compared to aluminum, making it suitable for extremely high-power or high-frequency applications where maximum heat transfer is needed. Although heavier and more expensive than aluminum, copper cores are often preferred in power electronics, RF applications, and aerospace systems that demand top-tier thermal and electrical performance.

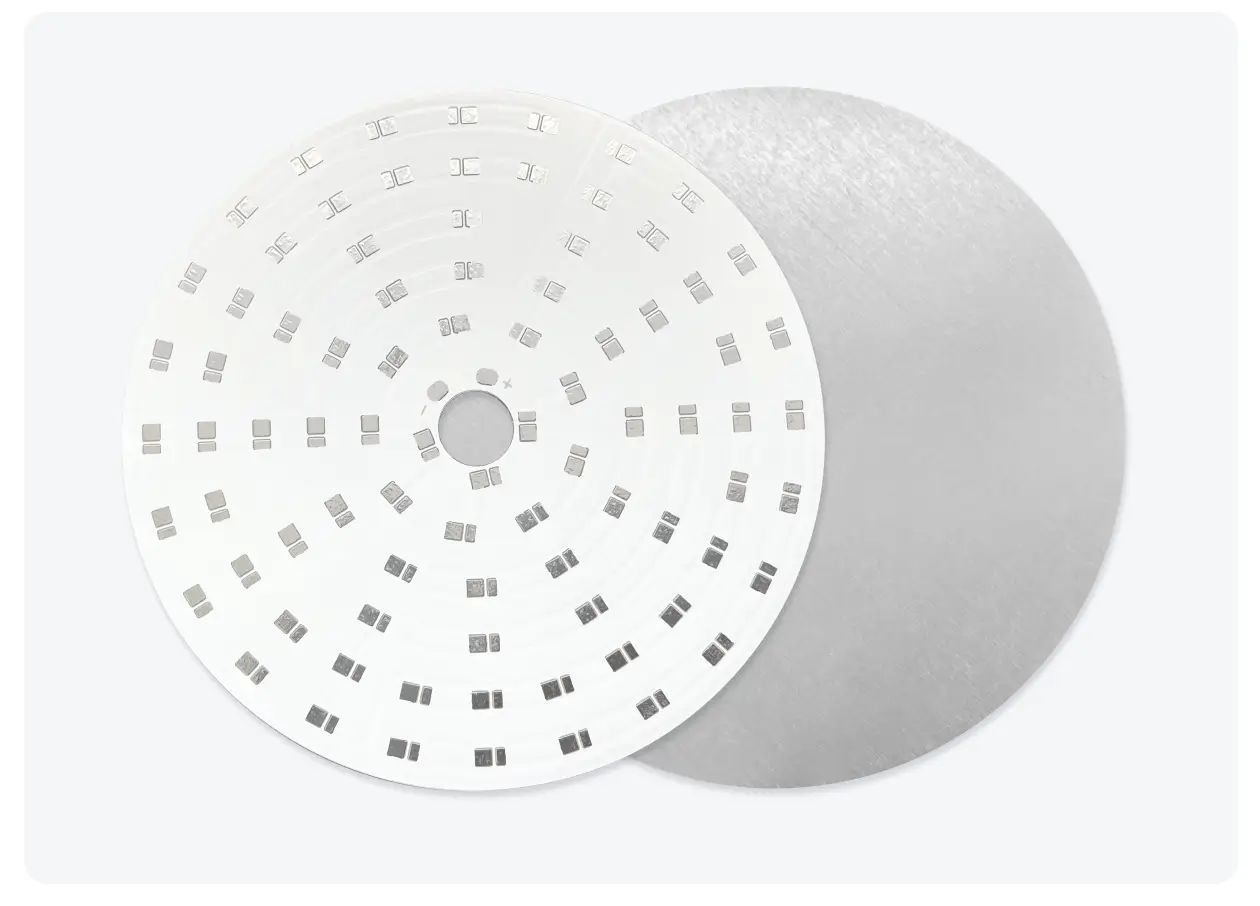

Structure and Properties of Metal Core PCBs
- 1. Metal Base (Aluminum or Copper): — The core substrate that provides mechanical support and primary heat dissipation pathway.
- 2. Dielectric Insulation Layer: — A thermally conductive but electrically insulating layer that separates the metal base from the circuit layer.
- 3. Copper Circuit Layer: — Standard copper traces laminated onto the dielectric layer for electrical connectivity.
The Benefits of EBEEPCB Metal Core PCB (MCPCB)
Superior Heat Dissipation
Metal core PCBs excel at drawing heat away from components thanks to their thermally conductive base. This helps maintain stable operating temperatures, prevents overheating, and prolongs the lifespan of sensitive electronics.
Higher Current Carrying Capacity
With better thermal conductivity, MCPCBs can safely handle higher current loads without performance drops. This makes them ideal for LED lighting, power converters, and other high-power electronics where reliable energy delivery is crucial.
Enhanced Mechanical Strength
The metal substrate provides increased durability and rigidity compared to standard FR4 boards. This added mechanical stability improves resistance to vibration and mechanical stress, essential for demanding industrial and automotive environments.
Metal Core PCB Design Considerations
Common Applications of Metal Core PCBs

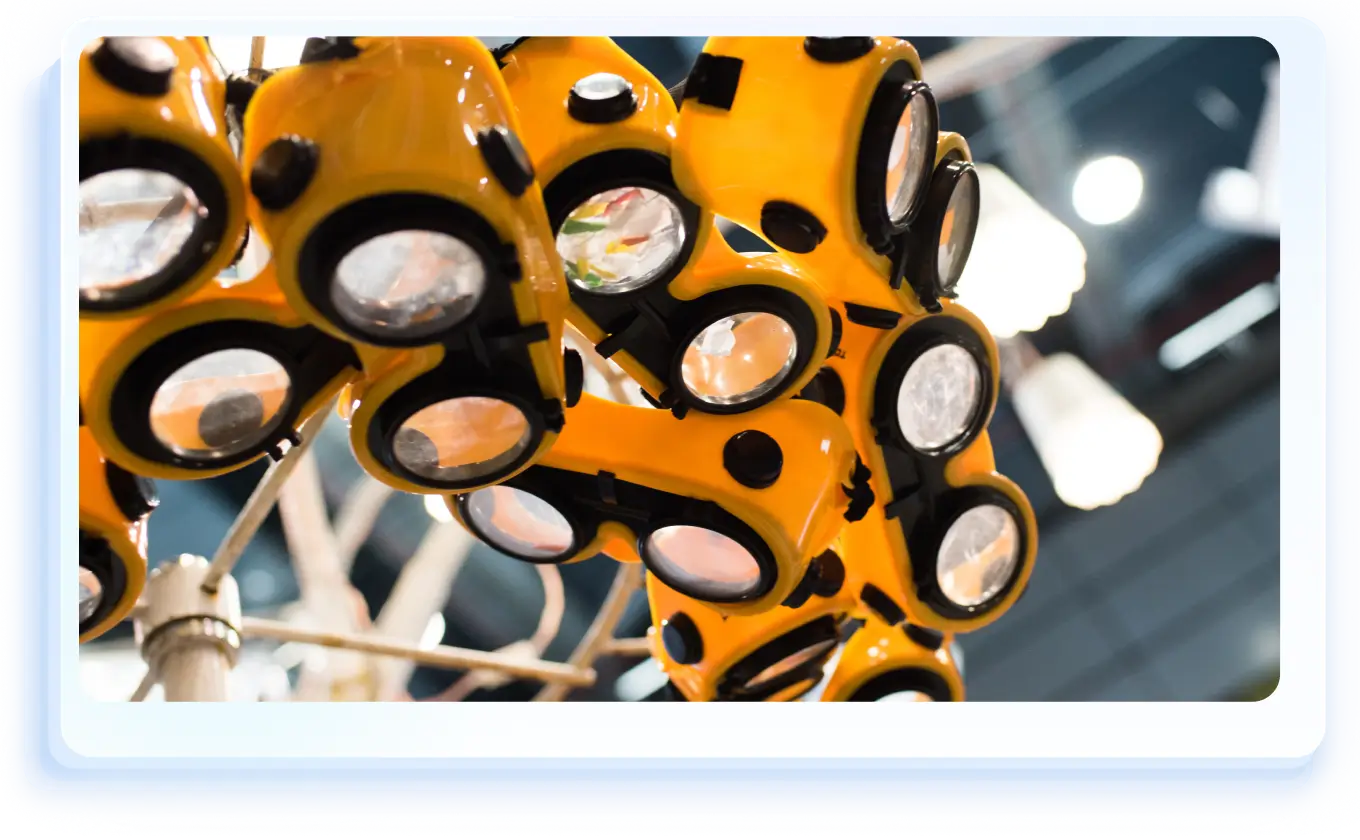

Efficient heat dissipation keeps LEDs cool, extending their lifespan and improving brightness stability.
Why Choose EBEEPCB as Your MCPCB Manufacturer?
Advanced Material Options
EBEEPCB offers both Aluminum-core and Copper-core (Direct Heatsink) MCPCBs to meet diverse performance needs. Aluminum-core PCBs with 1W thermal conductivity are ideal for low-power household LEDs, while our Direct Heatsink Copper-core PCBs with up to 380W thermal conductivity are perfect for demanding high-power applications such as automotive LEDs and COB modules.
Superior Heat Dissipation with Direct Heatsink
Unlike traditional Aluminum MCPCBs that rely on an insulation layer, EBEEPCB's direct heatsink technology allowing faster heat spread on Aluminum core. This design minimizes thermal resistance, ensuring faster and more efficient heat transfer—keeping your high-power devices stable, reliable, and long-lasting.
Competitive Pricing
Starting at just $4 for Aluminum core and $47 for Copper core MCPCBs, EBEEPCB offers industry-leading prices without compromising quality. Our automated manufacturing processes and economies of scale ensure you get the best value for your thermal management needs.
Fast Turnaround & Quality Assurance
With rapid 48-hour prototyping and rigorous quality control, EBEEPCB ensures your MCPCBs meet the highest standards for thermal performance, electrical reliability, and mechanical durability.
